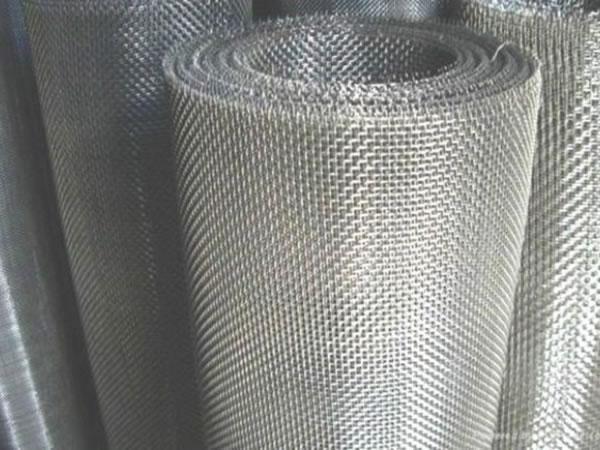

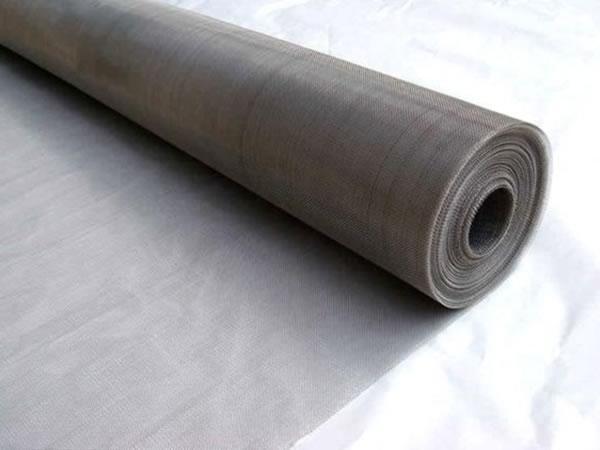

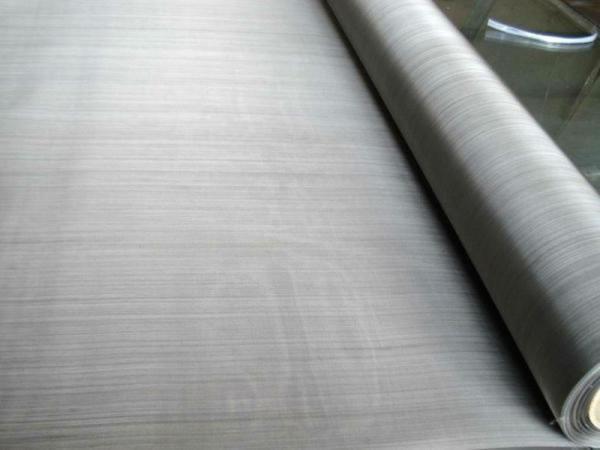

Monel Wire Mesh

This product has been discontinued and removed from our shelves.

Inquiry Form

Material: Monel 400, Monel 401, Monel 404, Monel R405, Monel K-500
Weaving: Plain weave, Twill weave
Melting Point: 1300 degree-1350 degree

Features of Monel Wire Mesh:
Monel wire mesh features a superior corrosion resistance and acid-alkali resistance, high temperature resistance, resistance to stress corrosion, high tensile strength and an excellent hardness.

Chemical Composition
Material C Mn Si S Ni Cu Fe
Monel 400 ≤0.30 ≤2.00 ≤0.50 ≤0.024 ≥63 28.0~34.0 ≤2.5
Material C Mn Si S Ni Cu Ti Al Fe
Monel K500 ≤0.25 ≤1.50 ≤0.50 ≤0.010 ≥63 27.0
~33.0 		0.35
~0.85 		2.30
~3.15 		≤2.0

Applications of Monel Wire Mesh:
Monel wire mesh can be widely used in chemical and petrochemical industries, as well as marine development. Monel wire mesh can also be used to manufacture all kinds of heat exchange equipment, pressure vessels, boiler feed water heater equipment, oil and chemical pipelines, containers, towers, tank, valves and more.

Specifications of Monel wire mesh
Mesh Wire diameter (mm) Aperture (mm) Mesh Wire diameter (mm) Aperture (mm)
2 1.80 10.90 04 0.21 0.425
3 1.60 6.866 50 0.19 0.318
4 1.20 5.15 60 0.15 0.273
5 0.91 4.17 70 0.14 0.223
6 0.80 3.433 80 0.12 0.198
8 0.60 2.575 90 0.11 0.172
10 0.55 1.990 100 0.10 0.154
12 0.50 1.616 120 0.08 0.132
14 0.45 1.362 140 0.07 0.111
16 0.40 1.188 150 0.065 0.104
18 0.35 1.060 160 0.065 0.094
20 0.30 0.970 180 0.053 0.088
26 0.28 0.696 200 0.053 0.074
30 0.25 0.596
