Slope protection system / Rockfall drapes / Slope Consolidation Mesh / Unstable slope protection mesh / Wire mesh drapery / Rockslopes safety net

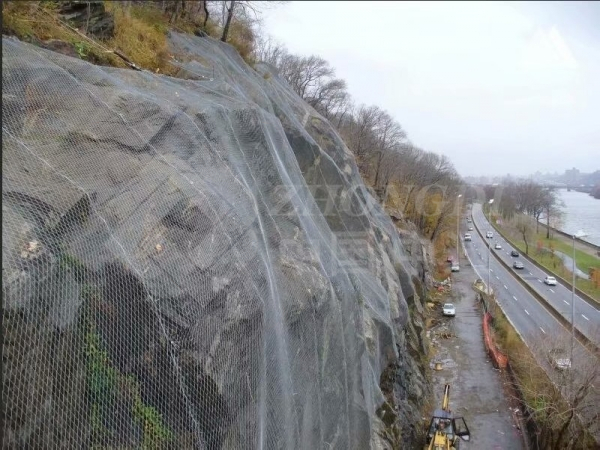

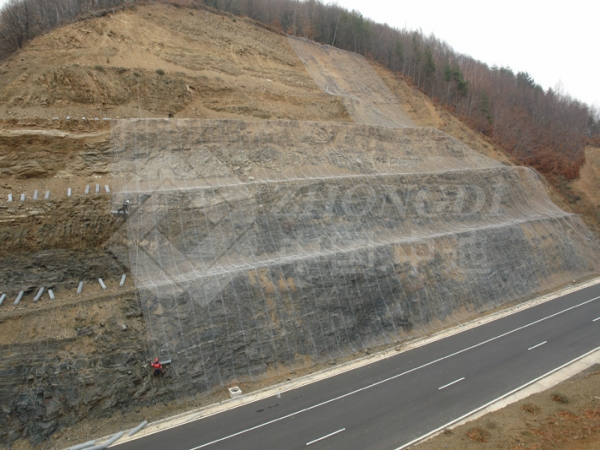

Our Slope Strengthening System is a method of stabilizing and strengthening unstable slopes with a flexible protective mesh structure and other components. The flexibility of the mesh makes it valuable as it can cover slopes with uneven structures. The system helps to prevent rock falls, landslides, avalanches, and mudslides, effectively ensuring the safety of people, roads, traffic, equipment, and buildings below.

The Slope Strengthening System is composed of high tensile steel mesh or Wire rope mesh (for example Tecco mesh, Spider Spiral Net, Ring Net, Wire Rope Net ), Anchors, Spike Plates, Boundary Ropes, Suture Ropes, PC Bar, and Connection Clips.

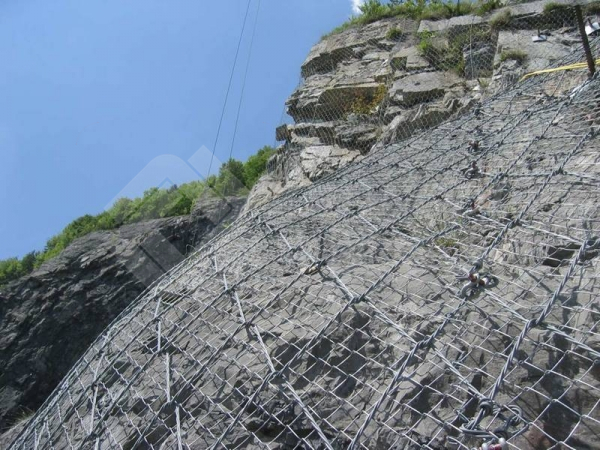

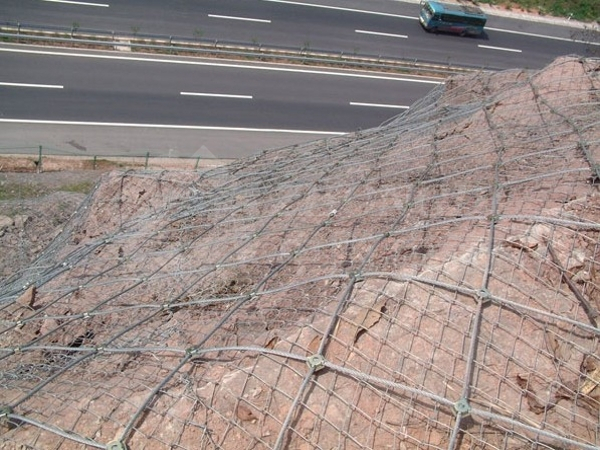

As the main component of the Slope Strengthening System, the Tecco Mesh is made of tightly machined steel wire with a diameter of 3mm / 4mm / 2mm and a tensile strength of not less than 1770Mpa; Spider Spiral Net is made of 3 high-strength steel wires synthetic rope, then made by machining; Ring Net is a ring structure composed of several turns of high-strength steel wire and fixed by a buckle; The wire rope net is made of high-strength steel wire rope with a diameter of 8mm / 10mm and fixed by special weaving;

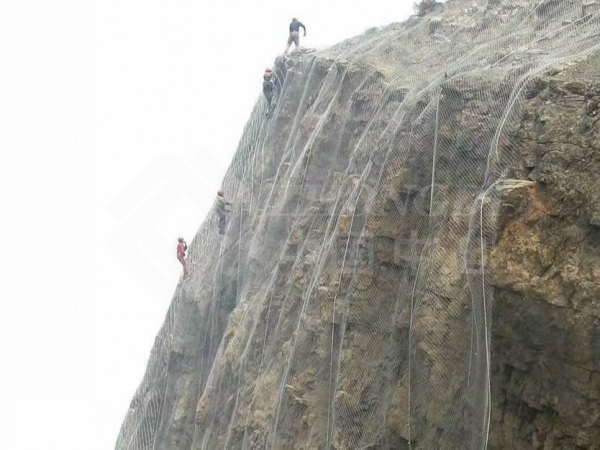

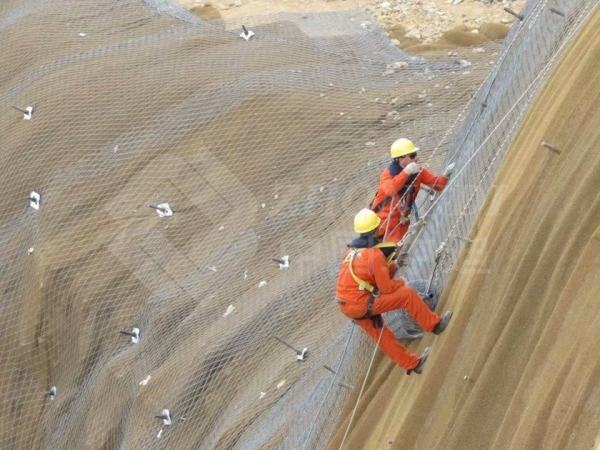

During the construction of the slope, the mesh will be first covered on the surface of the slope, and then the anchor points of the preset slope will be fixed by Anchors and Spike Plates, The two ends of the Boundary rope will be fixed by the PC Bar, it is mainly used to tighten and strengthen the edges of the mesh; Suture Ropes and Connection Clips will be used to connect the mesh surface; when landslide, gravel fall, or mudflow occurs, the gravel will be blocked by the Slope Strengthening System.
