Gabion Basket / Zinc Coated Gabion / Gabion Wire

Zinc Coated Gabion Material
1) Electric galvanized wire, zinc coated ≥10g/㎡
2) Hot dip galvanized wire, zinc coating 40-50g/㎡
3) Heavily zinc galvanized wire, zinc coating 240-300g/㎡
4) Galfan coated with a 95%Zinc + 5% Aluminum Mischmetal Alloy
5) As above PLUS heavy duty PVC coating

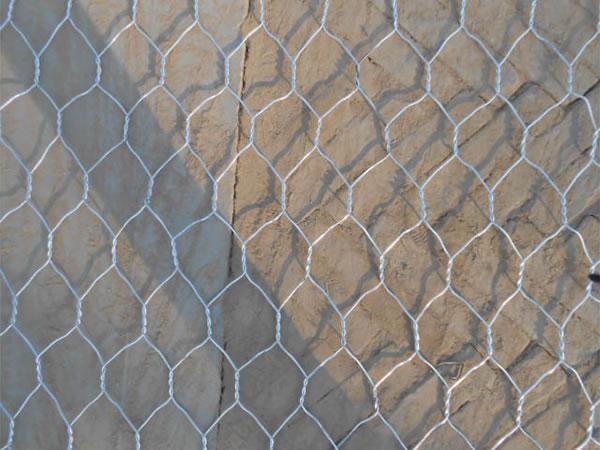

Zinc Coated Gabion Mesh Type: Double Twisted Hexagonal

Zinc Coated Gabion Mesh Size: 60mmx80mm,80mmx100mm,100mmx120mm etc.

Zinc Coated Gabion Basket Size: 2mx1mx0.5m,2mx1mx1m,3mx1mx1m,4mx1mx1m and so on.

Product Features
High security
High tensile strength design
10-Year limited warranty
Galvanized steel components
Suitable for all terrains
Durable polyester powder coating finish

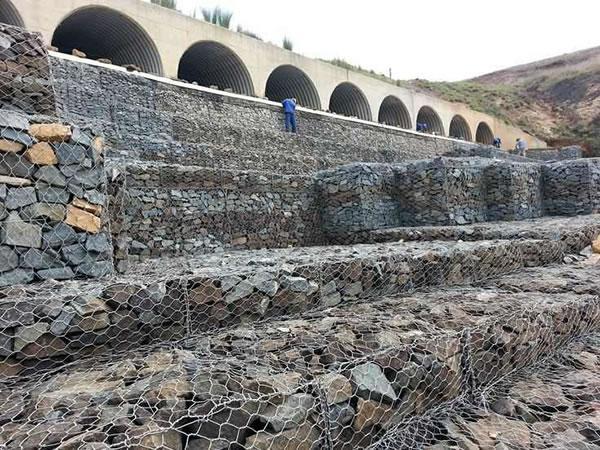

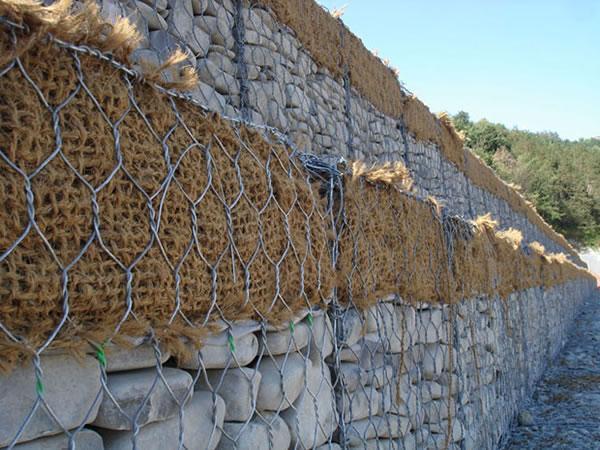

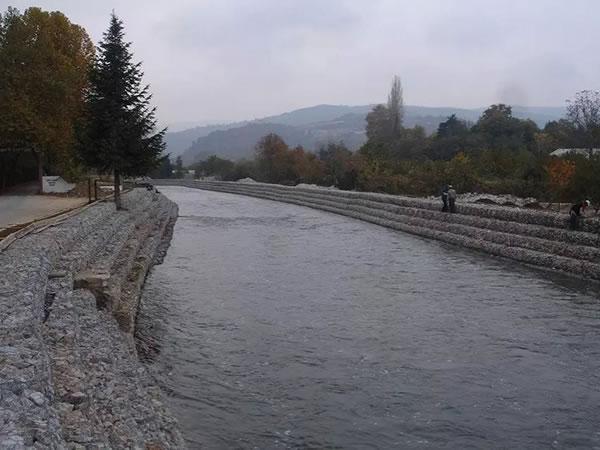

Zinc coated gabions are widely used for hydraulic and geo-technical control applications such as retaining walls, riverbank protection, weirs, channel linings etc.

Specification
For Gabions
Standard size:2mx1mx0.5m, 4mx1mx0.5m, 1mx1mx1m, 2mx1mx1m, 4mx1mx1m, 2mx1.5mx1m, 6mx2mx0.5m ( LxBxH)
Mesh size: 60mmx80mm, 80mmx100mm, 100mmx120mm, 120mmx140mm etc.
Body wire: 2.0mm, 2.7mm, 3.0mm.
Selvedge wire: 2.4mm, 3.4mm, 4.0mm.
Lacing wire: 2.2mm
Finishing: Heavily galvanized, Heavily galvanized and PVC coated, Galfan coated, Galfan coated and PVC coated

For Mattress
Standard size: 6mx2mx0.17m, 6mx2mx0.23m, 6mx2mx0.30m ( LxBxH)
Mesh size: 60mmx80mm, 80mmx100mm, 100mmx120mm.
Body wire: 2.0mm, 2.7mm,
Selvedge wire: 2.4mm, 3.4mm
Lacing wire: 2.2mm
Finishing: Heavily galvanized, Heavily galvanized and PVC coated, Galfan coated, Galfan coated and PVC coated
Special request available
