Introduction of the Stainless Steel Wedge Wire Grate:
The stainless steel linear wedge wire drain grate is an important component in floor drainage systems. This product is suitable for installation in bathrooms, kitchens, washrooms, swimming pools decks or any area that experiences large amounts of moisture.

Specifications of the Stainless Steel Wedge Wire Grate:

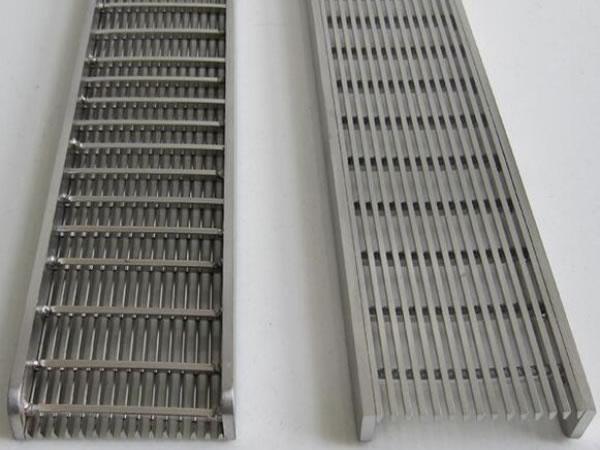

The Liner Drain Grate (wedge wire grate) is composed of two parts, one is the grate panel, the other is trough/ channel.

Details of the Wedge Wire Grate (wedge wire grate):
Material: SS304, SS316
AISI 304 or AISI316 100% Guarantee
AISI 304, Ni>=8%, Cr>=18.
AISI316, Ni>8%, Cr>18, Mo=2~3%

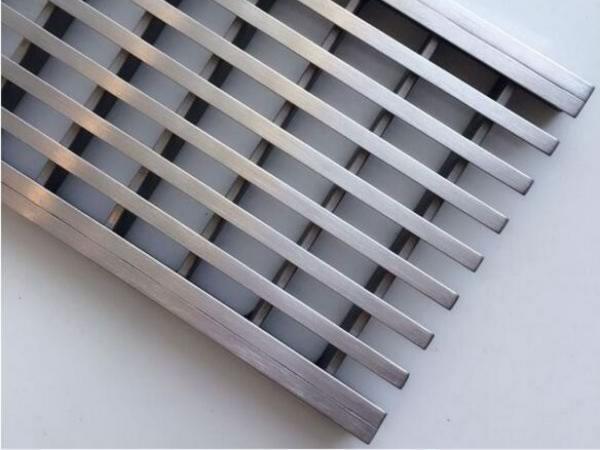

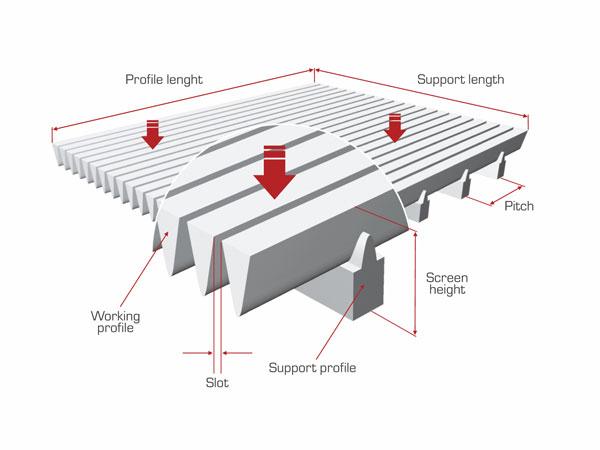

Wedge wire: 3x4.2mm, 3.2mm spacing
Supporting wire: 3x6mm, 25mm spacing
Frame: 22.8x5mm
Width: 63mm, 75mm, 98mm, 100mm
Length: 100mm, 200mm, 500mm, 1000mm etc.

Details of the Trough /Channel:
Material: AISI304,AISI316
Plate thickness: 1.2mm
Width: 70mm or 100mm
Length: 300mm or 500mm or 800mm or 1000mm etc.
Outlet: horizontal, with deodorization device, 40mm diameter
Frame: with flange, which is have a better function of waterproof.
We can also customize it according to customers' drawing.

Application of the Wedge Wire Grate:

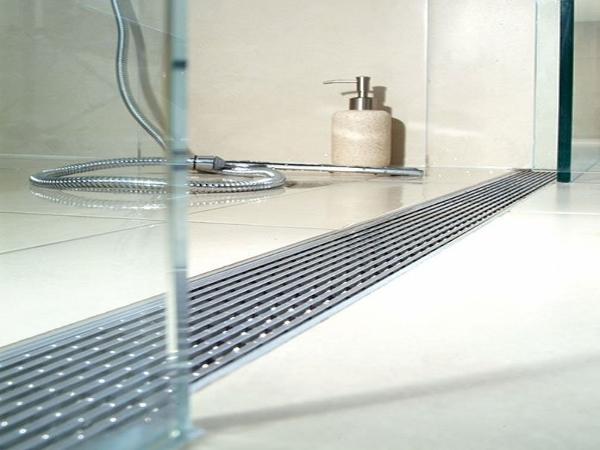

Indoor Application
Bathroom, shower room, kitchen, Shopping mall, Super market, warehouse, Hotels, Clubhouses, Gyms, Spas, Restaurants, pool surrounds, driveways, patios, balconies and storm drainage etc.

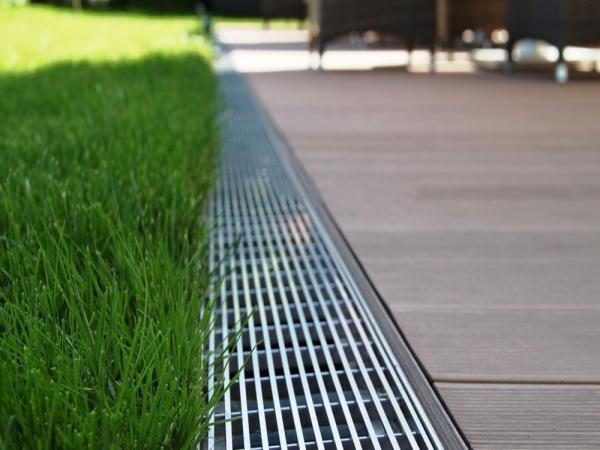

Outdoor Application
Square, New Construction, Resorts, Driveways, Balconies,Pools, Storm etc.

Some other specification is also have stock now, please contact us for more information.

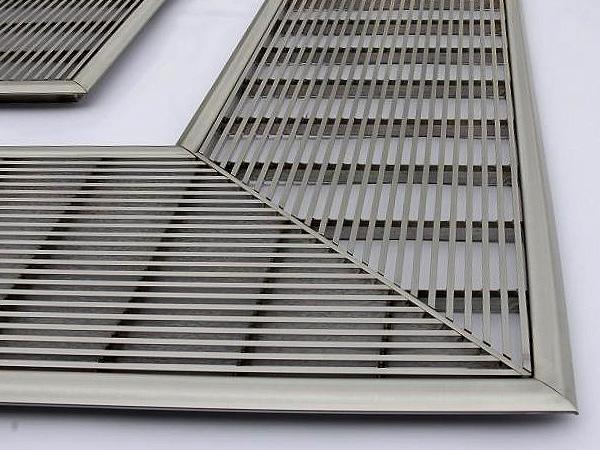

All Dimensions and Patterns can be customized.

Bathroom Linear Drain

All Dimensions and Patterns can be customized.
